Flex Mount
FM-1
Designed for mounting your display right where you need it. The FM-1 fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter. Always view your instruments from the perfect angle by using this accessory in combination with your Scanstrut Helm Pod.
Fits our:
- SPH-9-W
- SPH-3i-W
- SPH-4i-W
- SPH-4xi-W
Designed for mounting your display right where you need it. The FM-1 fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter. Always view your instruments from the perfect angle by using this accessory in combination with your Scanstrut Helm Pod.

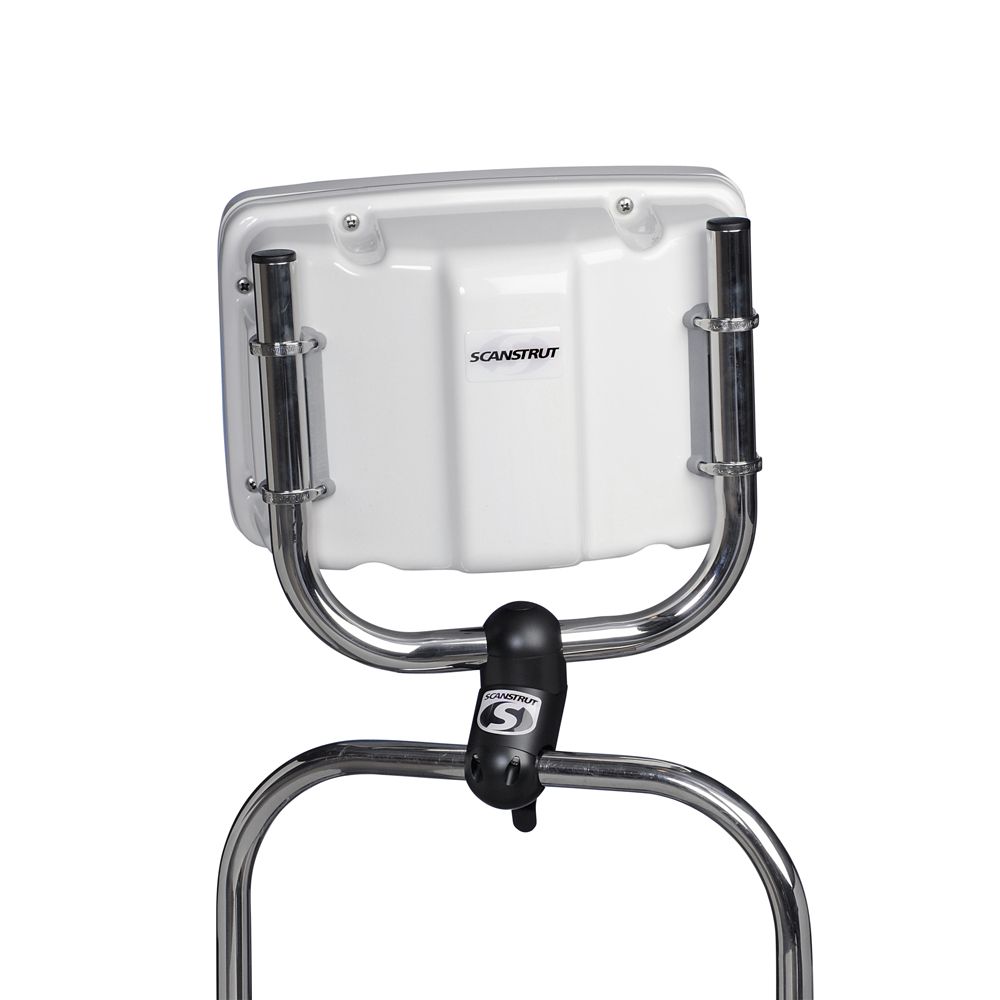

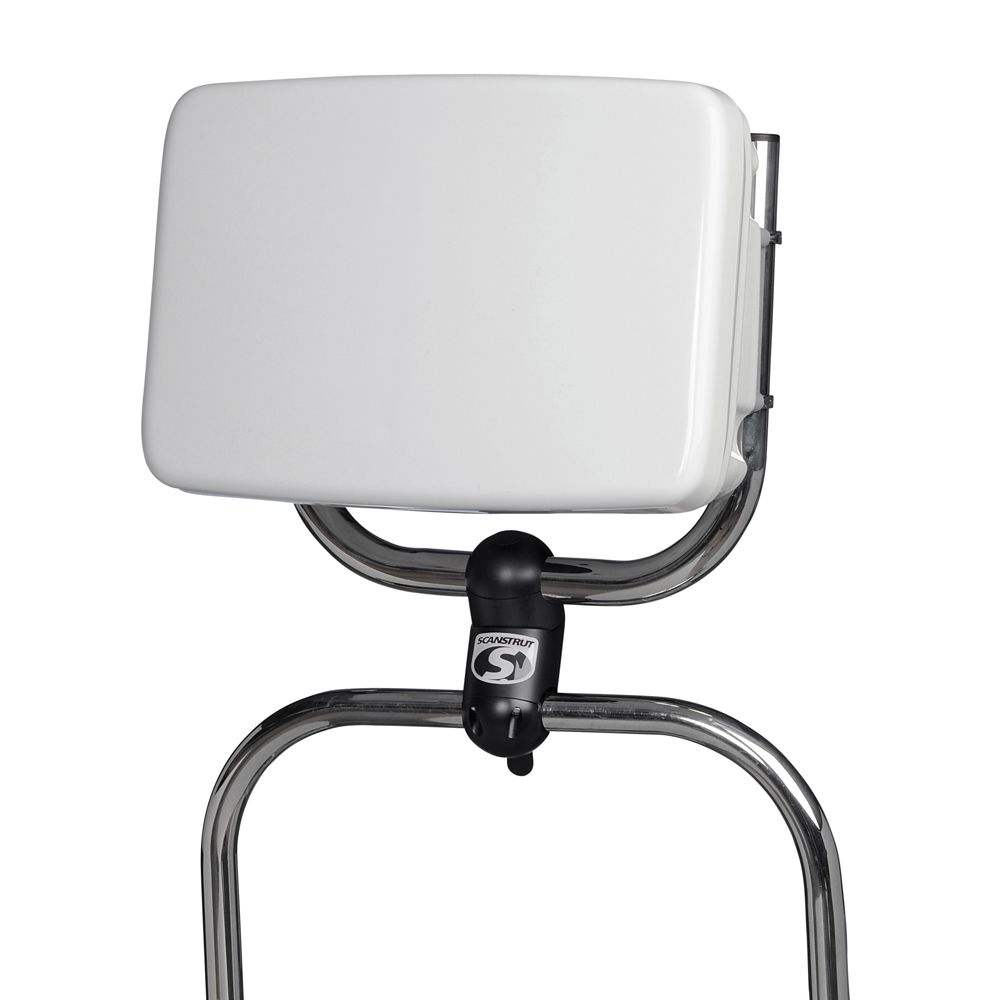

Always view your instruments from the perfect angle by using this accessory in combination with your Scanstrut Helm Pod. The Flex-Mount System gives you more options for installing your electronics - simply clamp onto your existing rail or steering binnacle and install the Helm Pod as normal.
Key Features:

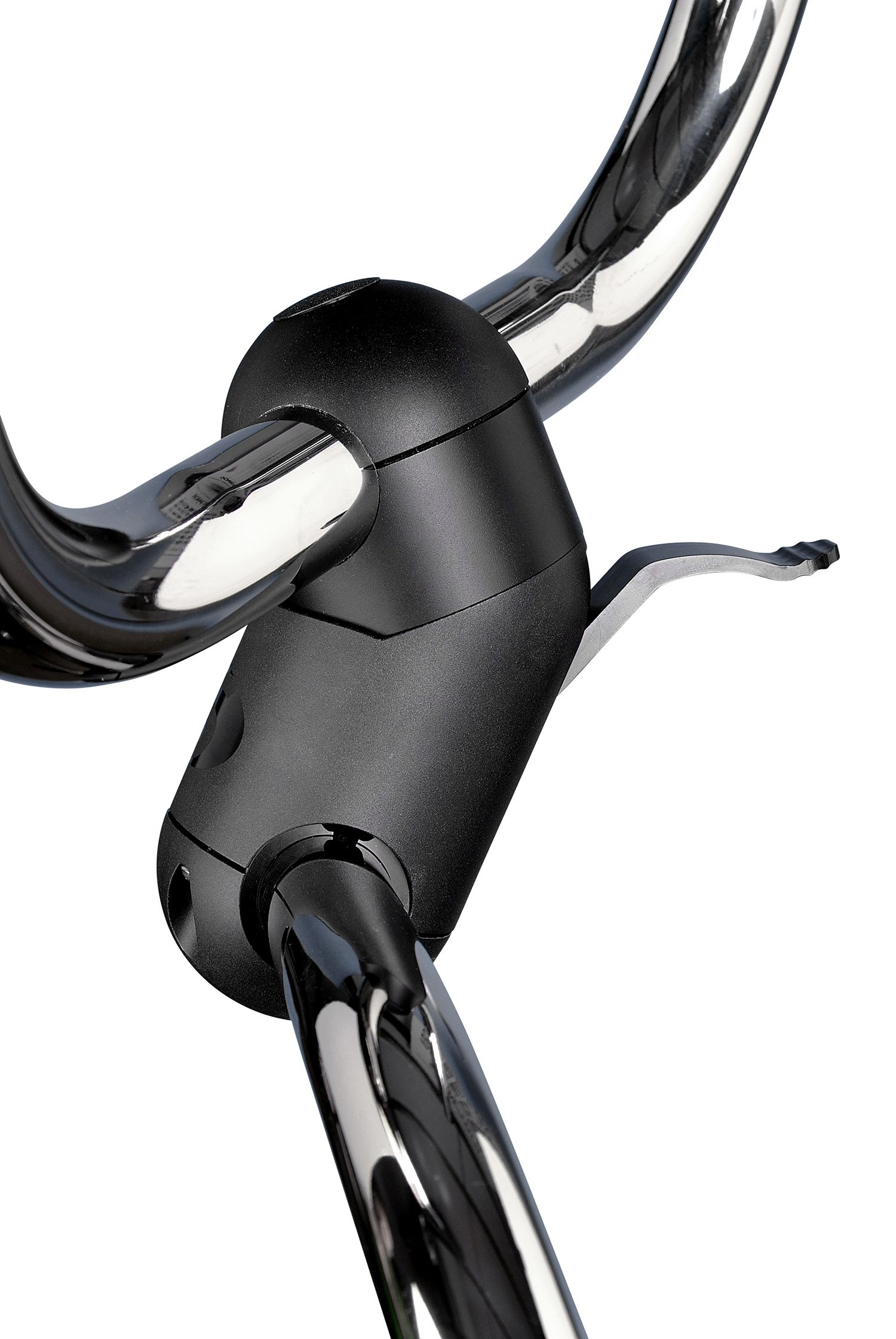

- Quick-release lever, for ease of use
- Tilt display forward & back for improved instrument viewing
- Cables exit the back of the Pod and into the pedestal/rail using a watertight grommet
Technical Specification
Material | 316 Stainless steel |
Fits pedestal rails from | 25mm to 33.7mm (0.98″ – 1.33″) |
Color | Silver & black |
Installation Guide
If you can't find the answer to your question, please get in touch and one of our product experts will get back to you.
My pedestal has a centre to centre measurement of 10” – can I still install a Helm Pod?
The back of the Helm Pod is designed to fit 9.5” or 12” centre pedestals. If your pedestal is a different measurement, you could use our Flex Mount System to install the product.
What are Scanpods made from?
They are made from acrylic capped ABS plastic, which makes them tough, corrosion free and UV stable.
Do I have to cut the front myself?
Scanpods are supplied uncut as standard. However, for a small fee we can supply pre-cut for your electronic.
How do I cut the pod front?
Use jigsaw, but slow it right down so as not to melt the ABS. Move slowly and patiently through the plastic.
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

Accelerated UV Material Test
We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.Related Products
