NEW
Hidden 15W 3-Coil
SC-CW-1GT

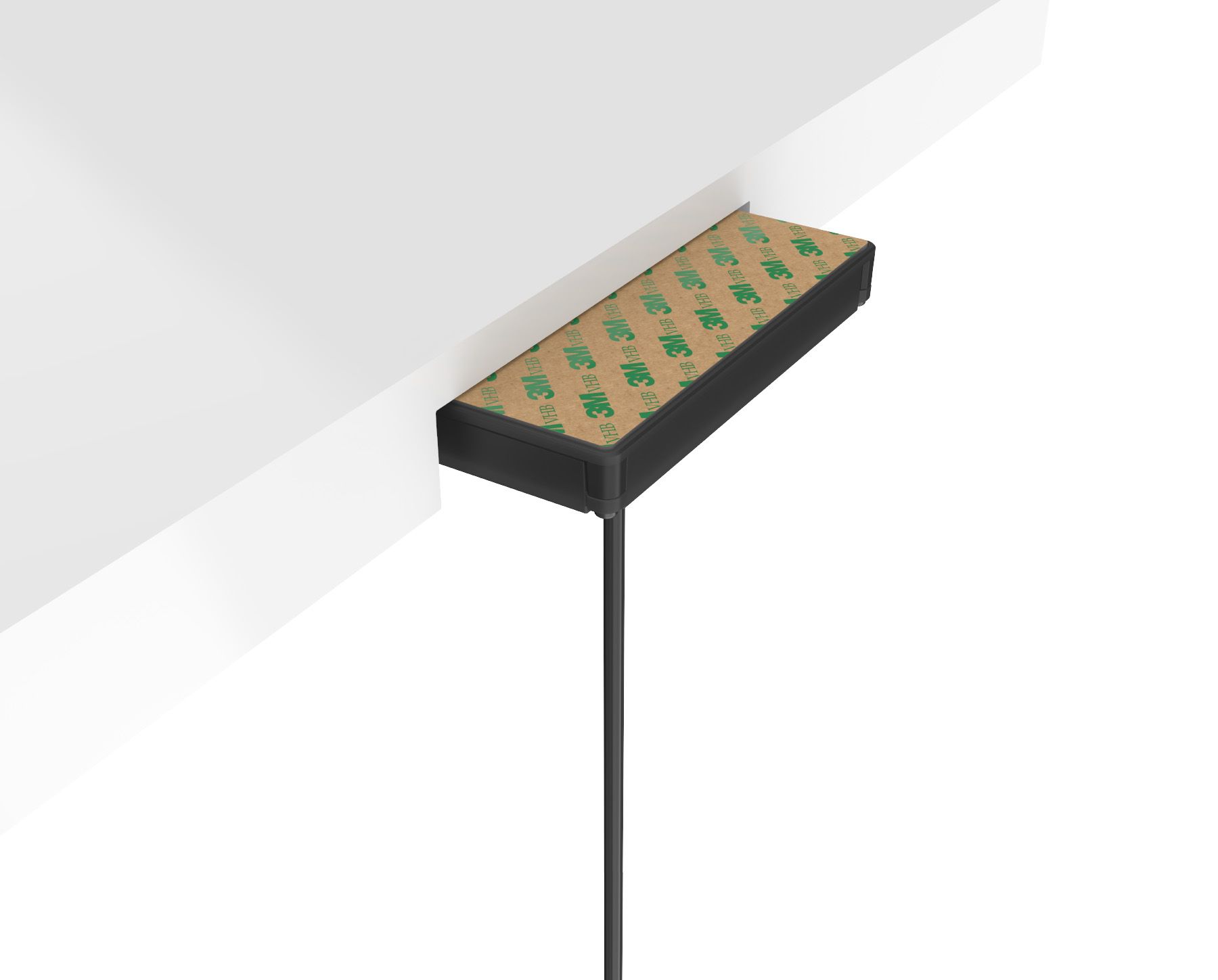

Hidden from view, ready to charge.
Engineered to be installed under the surface, leaving the top surface uncluttered.
The pioneering three-coil hidden charger is designed to revolutionize your charging experience. Mounted underneath your selected surface, Hidden 3 Coil gives a sleek and ultra-clean aesthetic.
With the option of having a rubber grip to showcase location or to go ultra-minimal, you could etch a marker or logo to showcase placement for your phone.
The charger's innovative three-coil design is a game-changer for outdoor waterproof charging.
Three overlapping charging coils maximize performance, ensuring reliable charging from various phone placements.
The intelligent electronics ensure optimal charging by selecting the best coil based on the phone's location. Additionally, the built-in heat management system adjusts charging speed based on ambient and phone temperature.
This charger is tailored for those seeking uninterrupted charging during outdoor adventures, offering a reliable and efficient solution for powering devices on the go.
Key features:
- 12/24V
- 15W Charger
- IPX6 Waterproof
- Qi compatible
- Input Voltage Range: 10-30V DC (12/24V system)
- Three overlapping charging coils maximize performance
- Reverse polarity protection
- Ultra-grippy rubber edge – to show the location for charger and for phone grip
- No alignment is needed, throw your phone on the charger and your phone will always charge!
- Uninterrupted charging during outdoor adventures
- Rear installation light, for testing power.

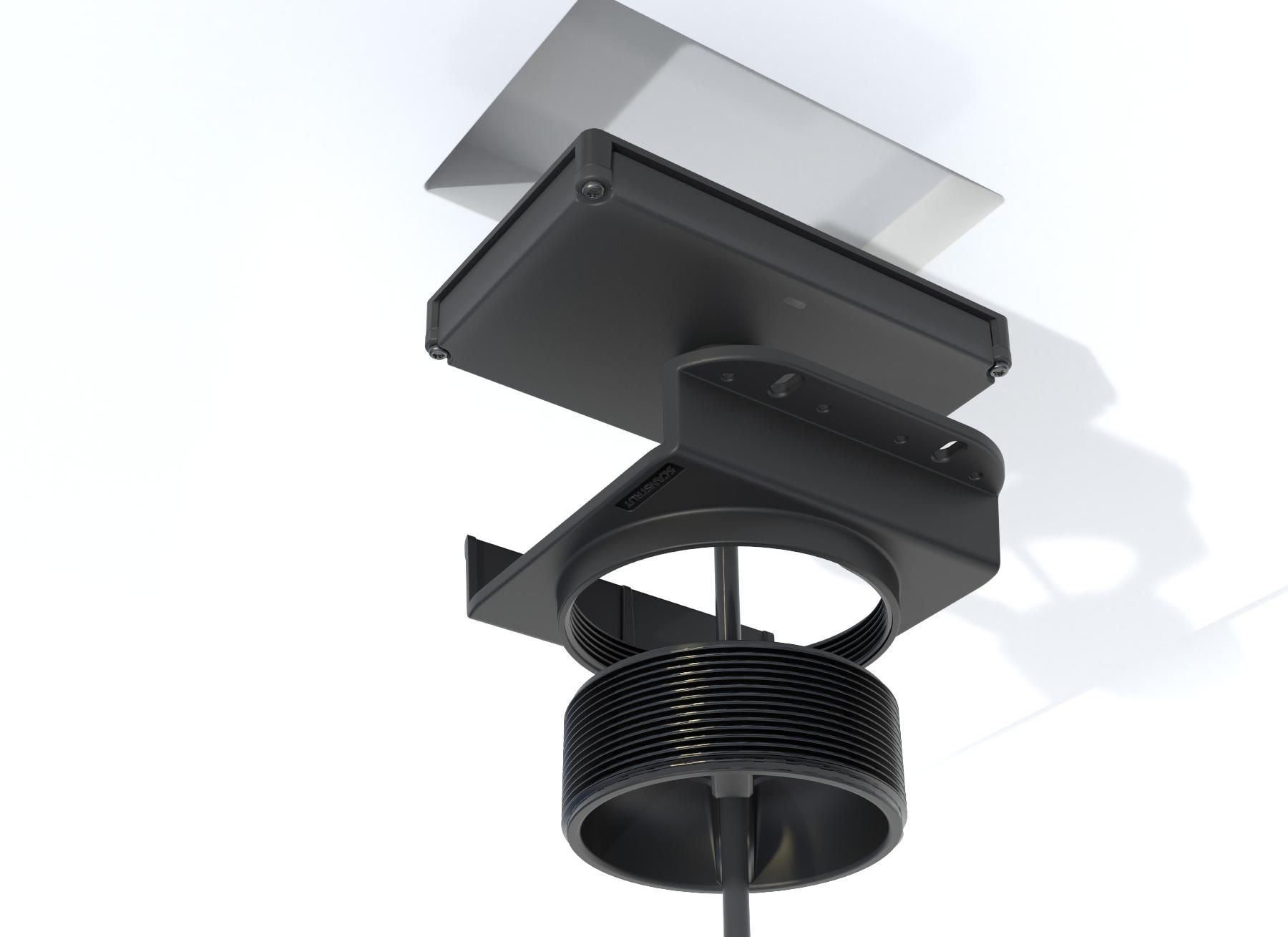

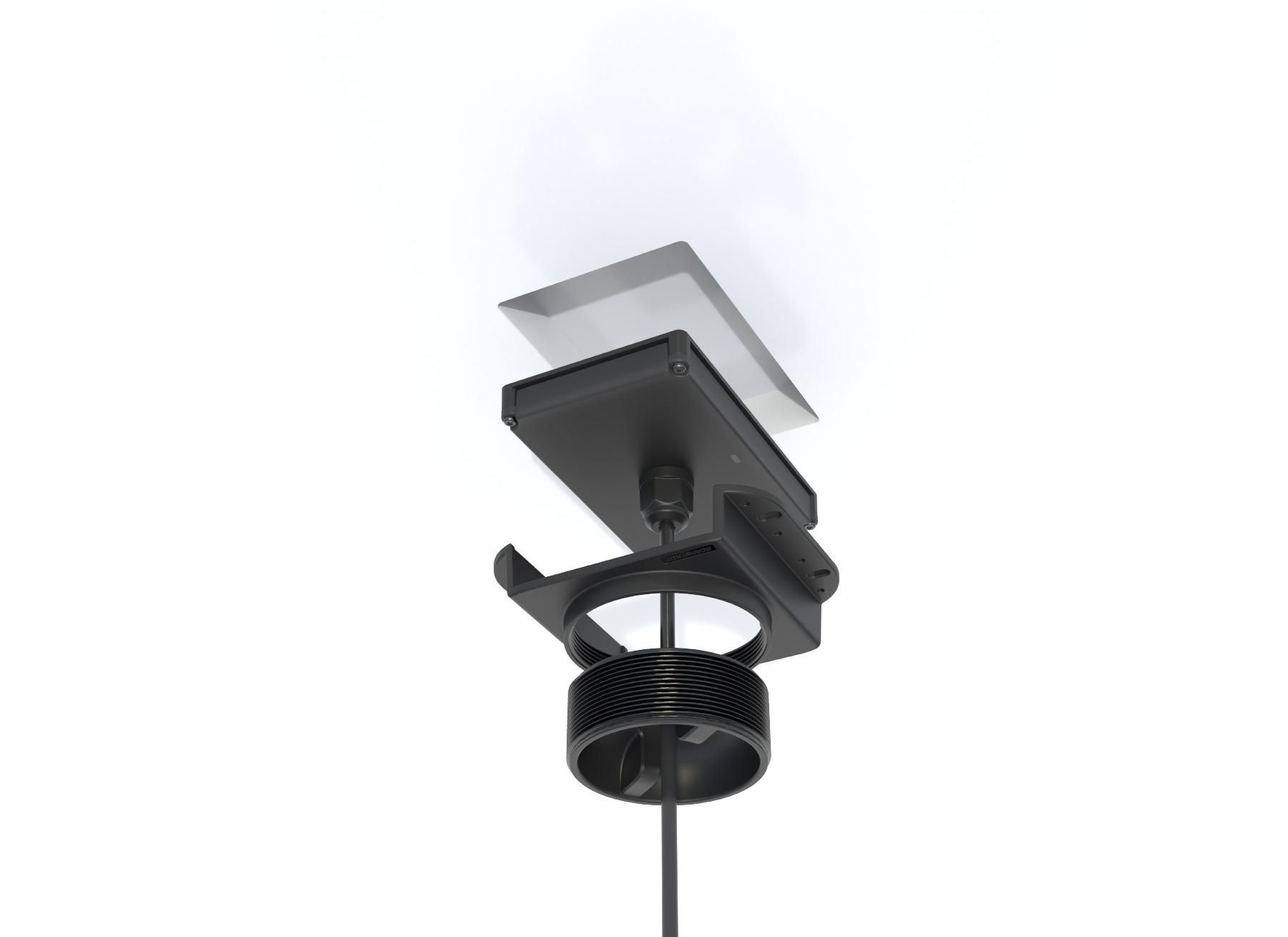

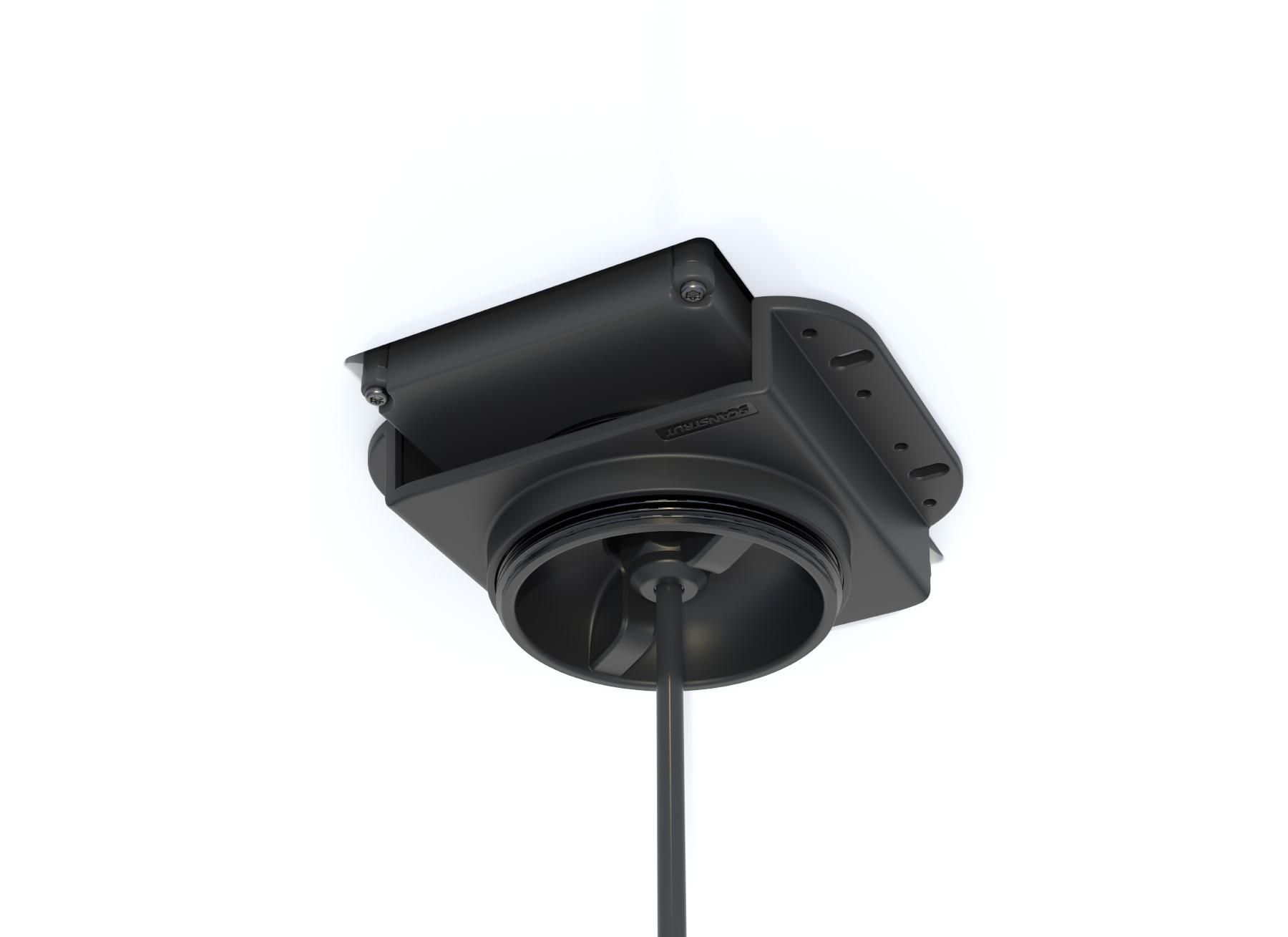

- Simple one-cut installation
- Foreign object detection
- 5-year warranty
Electrical Information
Input Voltage Range | 10-30V DC (12/24V system) |
Input current max | 2A |
Output Power | 15W (12V 1.25A) |
Standby Power Draw | <1.2W |
Certification | CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, E24, PSE Certified |
Installation Guide
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

QI
The world’s No.1 wireless charging standard, this ensures our chargers are built to an extreme level of safety and ensures compatibility of all phones.
IP Test
Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).
Accelerated UV Material Test
We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
Cable Bend Test
Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.
Thermal Chamber Test
Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.
Cable Twist Test
Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.
Temperature Chamber Test
Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.
Corrosion Test
100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
On Water Charge Test
Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.
On Water Testing Global
Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
C Tick
An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.
CE / UKCA
Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.
ECE R10
The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.
FCC
A legal requirement to sell any communication device (RF) in the United States of America.
Humidity Chamber Test
Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
ROHS
Confirms the levels of substances and chemicals in our electrical products, with the aim of protecting human and animal health.Related Products
